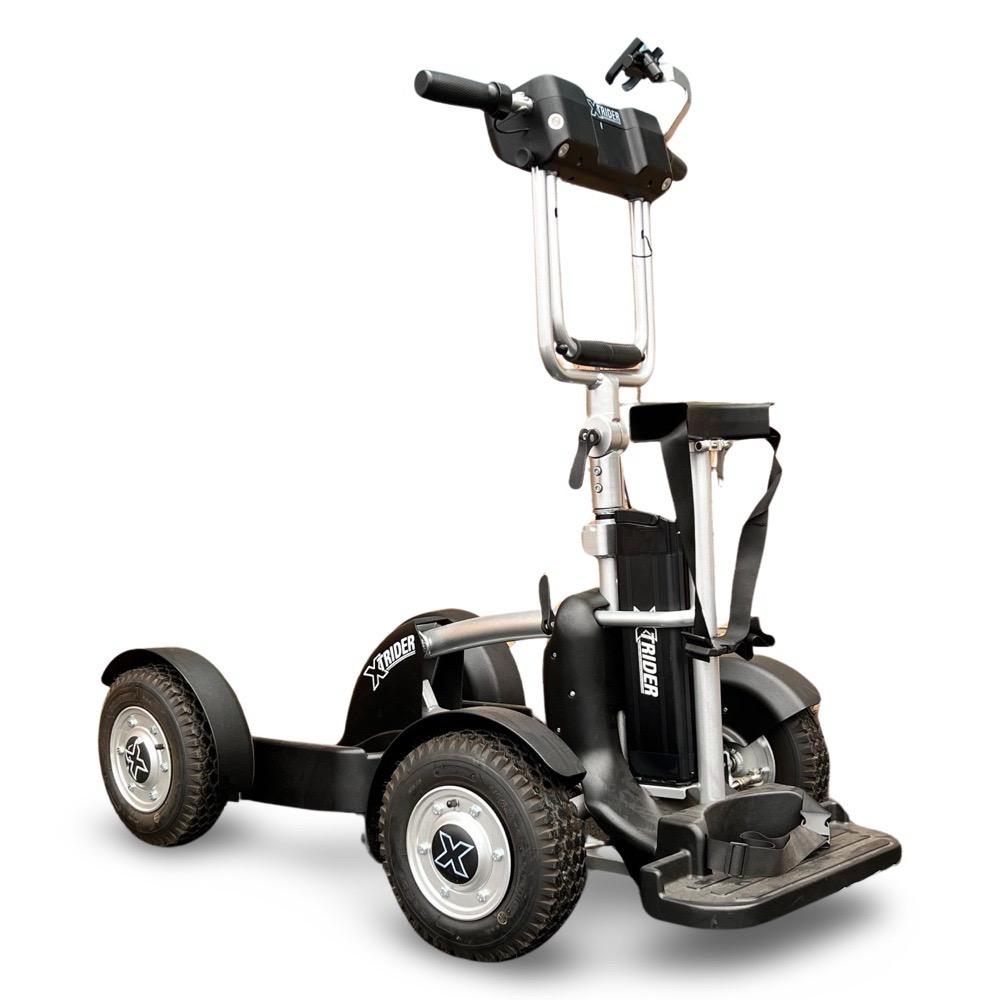

Xtrider V5 Multi function walk and ride Golf buggy

• 2 x 500w 60v Hub motors
• 60v 12Ah Lithium battery as standard
• Walk, sit or stand
• Download a PDF Data Sheet
• Click to print a VAT Exemption form
• Delivery Method: Pallet Network

Description

The price displayed for this buggy is VAT exempt (Conditions apply) !!<>!!Powerhouse Golf is the exclusive UK distributer for the "Xtrider" golf buggy!!<>!! Now, whether you want to walk or ride, the choice is yours. For the first time ever, something that can do either is available! Many people would like to walk in order to keep fit, but also to have an option to ride in case they are tired or in a hurry. The Xtrider allows just this, a combination of walking and riding, your call! The Xtrider is an electric trolley capable of carrying heavy loads that can be converted to a ride-on and vice versa in a second. It's Its high grade aluminium frame is powered by powerful brushless motors and equipped with an extra-long range removable 60v 27 holes Lithium battery fitted as standard (an upgrade to 36 hole is available). A sturdy machine that's very stable when riding, it won't fall over! It allows switching between powered and non-powered (free wheel) trolley mode with the push of a button. !!<>!!3 modes!!<>!! Stand on powered Walk behind powered Walk behind free wheel/push In fact there are also seated mode and remote control mode The Xtrider is lightweight and compact, can be quickly folded and put into a hatchback car or stored in limited spaces. The unit can also be spit in to 2 parts to allow loading into a booted car. !!<>!!This buggy is exclusive to Powerhouse Golf. Please contact us for further details.!!<>!!

Technical Spec

!!<>!!Dimensions (L x W x H) !!<>!! Ride-on mode 125 x 79 x 119 cm (4 ft 1 in x 2 ft 7 in x 3 ft 11 in) Trolley mode 105 x 79 x 114 cm (3 ft 5 in x 2 ft 7 in x 3 ft 9 in) Folded 94 x 79 x 66 cm (3 ft 1 in x 2 ft 7 in x 2 ft 2 in) Split - front part + handlebar 41 x 76 x 68 cm (1 ft 4 in x 2 ft 6 in x 2 ft 3 in) Split - rear part 84 x 79 x 36 cm (2 ft 9 in x 2 ft 7 in x 1 ft 2 in) Stepping height (ride-on mode) 11 cm (4.3 in) !!<>!!Weights !!<>!! Self-weight with battery 43 kg (95 lb) Battery (removable) weight 12 Ah battery 4.2 kg (9.3 lb) 15 Ah battery (optional) 4.4 kg (9.7 lb) Self-weight without battery 39 kg (86 lb) Front part weight without Handlebar 16 kg (35 lb) Handlebar weight 3 kg (7 lb) Rear part weight 20 kg (44 lb) Maximum load weight 140 kg (310 lb) Maximum weight on cargo carrier 50 kg (110 lb) !!<>!!Travel range !!<>!! On level road (riding) 12 Ah battery 45 km (28 mi) 15 Ah battery 56 km (35 mi) On hilly lawn (load weight 110 kg (240 lb), riding, typical) 12 Ah battery 22 km (14 mi) 15 Ah battery 28 km (17 mi) !!<>!!Maximum speed !!<>!! Riding on level road 12 kph (7.5 mph) Walking on level road 6 kph (3.7 mph) Maximum climbing angle on road (load weight 110 kg (240 lb), riding) 15 deg (27 %) Turning radius 160 cm (5 ft 3 in) !!<>!!Frame!!<>!! Material High-grade aluminum Coating Powder !!<>!!Tires!!<>!! Type Pneumatic, tire and tube Overall diameter 33 cm (13 in) Section width 12.7 cm (5 in) Tread Turf-friendly, high-traction Pressure 2.4 bar (35 psi) !!<>!!Motors!!<>!! Type Brushless, in-wheel Voltage 60 V Power 2 x 500 W !!<>!!Gear!!<>!! Type Planetary, in-wheel Reduction ratio 5.2:1 !!<>!!Brakes!!<>!! Riding and walking 2 x automatic motor brakes Parking and emergency 2 x automatic electro-magnetic brakes !!<>!!Controller!!<>!! Type Dual channel Voltage 60 V Maximum current 36 A !!<>!!Battery!!<>!! Type Lithium-ion Voltage 60 V Capacity 12 Ah or 15 Ah !!<>!!Charger!!<>!! Input 220-240 V or 110-120 V, 50/60 Hz Output 71.4 V, 4 A Charging time 12 Ah battery 3 h 15 Ah battery 3:45 h !!<>!!Lights (optional)!!<>!! Headlights 2 x 1W, LED Tail/brake/reverse lights 2 x 1W, LED Turn indicators/hazard lights 4 x 1W, LED !!<>!!Controls!!<>!! Riding throttle Thumb-operated, right hand Walking button Thumb-operated, centered left and right hand Control panel Silicone rubber, large buttons Drive system buttons Forward/reverse, 5 ride-on mode maximum speed levels, 10 trolley mode speed levels, non-powered (freewheel - push) mode, trip distance reset, imperial/metric units Light system buttons (optional) Head and tail lights, turn indicators, hazard lights Additional buttons Buzzer !!<>!!Display!!<>!! Screen 9 x 6 cm (3.6 x 2.4 in) LCD, grey on white, sunlight readable Indications Battery charge, forward/reverse, speed (kph/mph), speed level, ride on/trolley mode, non-powered (free wheel - push) mode, trip distance (km/mi), head and tail lights, turn indicators/hazard lights, remote control mode, system failures !!<>!!Remote controller (optional) !!<>!! Communication Bluetooth Joystick Thumb-operated buttons On/off, forward/reverse, 10 remote control mode speed levels, go straight, head and tail lights, buzzer !!<>!!Safety features!!<>!! Wide wheel base and axle track Low center of gravity 2 x automatic motor brake, rear wheels 2 x automatic parking and emergency brake, rear wheels, locked when power is off Large 13 in wheels Steering angle limitation (optional) Collapsible cargo carrier !!<>!!Buzzer!!<>!! Reverse beeping sound and indication System failure beeping sound and indication !!<>!!Additional features !!<>!! Handlebar tilt adjustment Seat height adjustment Upper cargo holder height adjustment Phone charging USB port Key for power on/off and battery lock Onboard seat stowing Handlebar folding for transportation and storage Cargo carrier folding for transportation and storage Quick disassembly/reassembly to/from three parts for transportation and shipping !!<>!!(optional) !!<>!! Storage compartment Crosswise switching of controls Manual parking brakes release !!<>!!Accessories !!<>!! Bike seat (removable) Seat stowing post Tractor seat (removable) Phone holder Drink holder Umbrella holder Mirrors Towing hitch Trailer

VAT Exemption

!!<>!! VAT is Exemption is available on this buggy. This means that if due to health reasons you would benefit from the use of a Golf Buggy, you would not have to pay the cost of the VAT on the product. In order to qualify for exemption, the buggy must be for your own private use and you must be able to supply ONE of the following: 1. Supply a copy of your blue "Mobility Badge". 2. Supply a letter from your GP explaining that for medical reasons, you would find it difficult to play golf without a Golf Buggy and complete a very simply declaration form. It is not always necessary to provide this information at the point of purchase, but if it is your intention to be exempt from VAT, you must supply it within 3 months of purchase. On this basis, the VAT will not be charged but may be charged at a later date if you are then unable to provide the correct documents. !!<Click here for more information>!!

Accessories

Seat. Lighting kit and buzzer Phone holder Bottle holder. Umbrella holder. Mirrors. Remote Controller. (Available to follow) Trailer. Plastic covers replacement set - colour changing.

Close up of Foot pedals and cockpit
