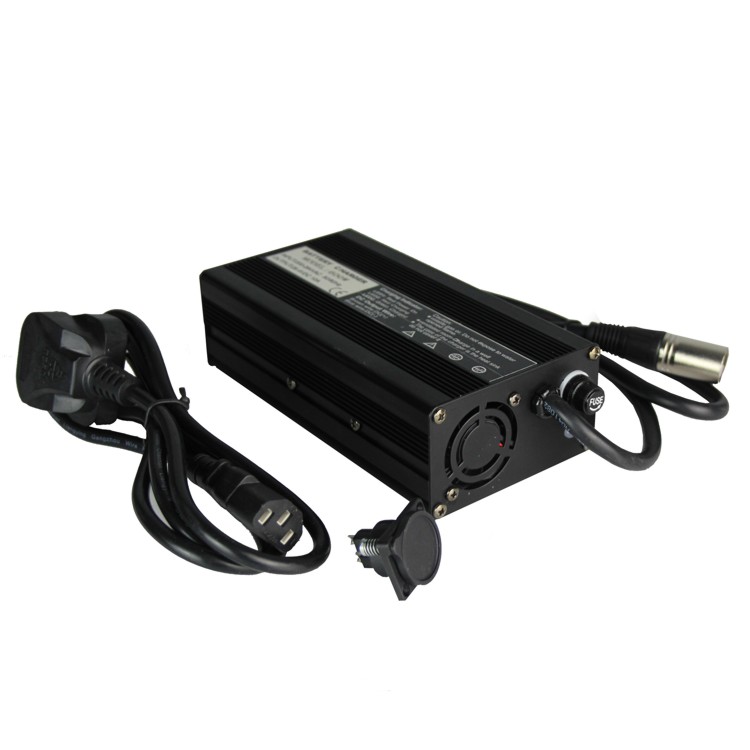

Charger - 24v 10A (36+ Lithium Buggy) 45Ah Battery

• For use on 24v 45ah Lithium Ion battery only
• Returns to trickle after charge is complete
• Delivery Method: Parcel Force

Description

10A Output.For use on 24v 45Ah Lithium Ion Battery ONLY. Returns to trickle after charge is complete. Fitted with Torberry connections. Suitable for Powerhouse Lithium Battery.

Charging Advice

All our chargers are specially designed for use with batteries for Golf Buggies and Golf Trolleys. Please see our !!<Charger FAQ's Page>!! for more information on how to get the most from your Golf Trolley and Golf Buggy batteries.

9A 24V Fan Assisted Charger. 3 Stage fully intelligent Charging. For long term charging.

Stage 1. Charger Equalizes batteries.
Accesses the state of the charge in each battery before charging and equalizes the 2 batteries.

Stage 2. Charger controls rate of charge in accordance with previous results. Adjusts the input power of charge that is made depending on the charge present, reduces risk of charging the batteries to quickly.

Stage 3. After charging batteries is constantly monitored and keeps battery topped up on trickle or floating charge. On completion of the charge the input current is reduced to a nominal amount. A very tiny charge is added to the batteries as and when it is needed. This allows the charger to remain connected the batteries for long periods of time, keeping the batteries in tip-top condition.

Features:

1. Short-circuit protection
2. Overload protection
3. Reverse polarity protection
4. Intelligent temperature compensation
5. Automatic multi-rate charger
6. Unique LCD display or meter
7. Indicator lights: Red, green, yellow.
8. Wide input voltage range
9. Advanced smd technology
10.Stylish aluminium housing

Specifications:

Input: Voltage AC100V-240V
Output: Current 9A (max) 200W (max)
Back lit LCD display
Dimensions (mm):200 x 120 x 60

Suitable for All Battery types including: Sealed and flooded Lead Acid, Gel, Agm.
For All Golf Buggies. Mobility Buggies and similar Applications. Fitted with 3 way din plug.
