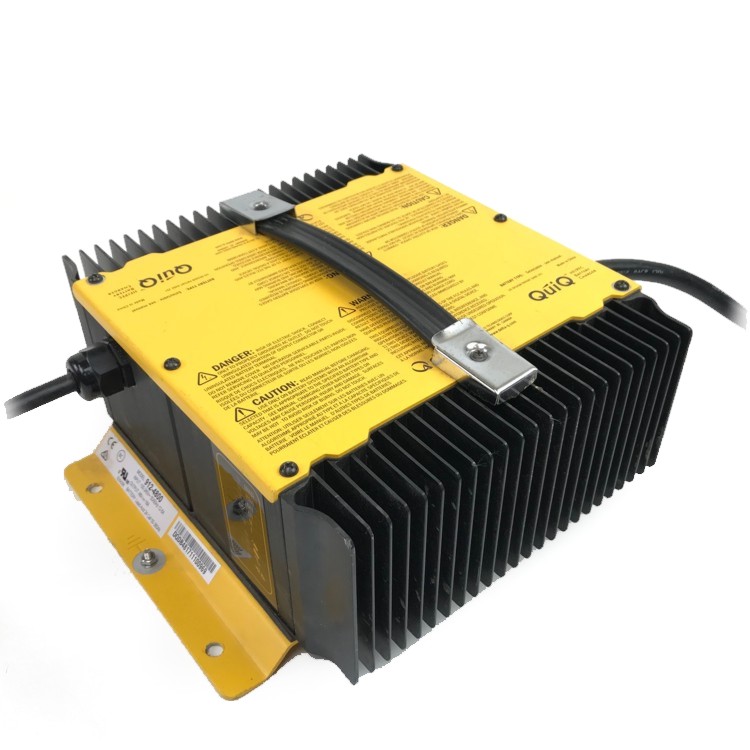

Charger - Double seater 48v 18A Quiq Delta (Lead Acid)
- 48V Capacity. Can Charge 6 x 8v buggy batteries
- Using the latest technology
- Leading the charge in innovation.
- Delivery Method: Parcel Force

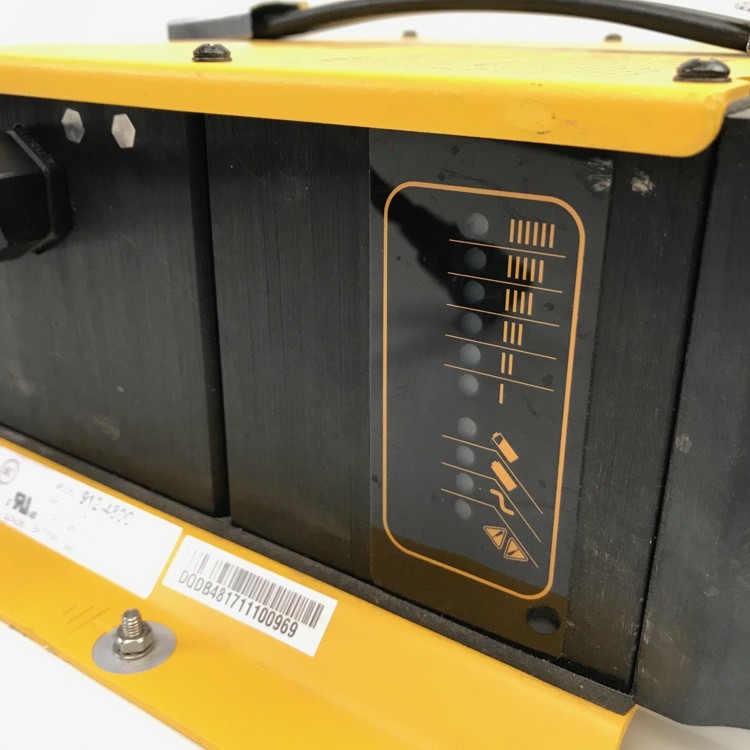

Description48v 18A Full auto battery charger for double seater golf buggies QuiQ Series chargers for electric vehicles and industrial equipment QuiQ Series battery chargers offer manufacturers a proven technology platform to integrate across machine platforms. Identical mechanical designs allow manufacturers to offer different charging options to their customers. Charge up to 30% faster with the QuiQ 1500, or integrate on-board accessories using the integrated DC-DC converter in the QuiQ-dci. Through software and accessories, original equipment manufacturers (OEMs) can customize their Delta-Q battery charging solutions for better application fit and additional features for the customer. Delta-Q offers software to support charger programming, battery troubleshooting and charge cycle data analysis. Chargers can be customized with different AC and DC cabling, remote LED signaling, connectors, temperature sensors, and carrying handles. !!<>!!Features!!<>!! 1.48 Volts 2. 18A maximum 3. For Lead acid (Wet/AGM/GEL)* 4. AC input voltage - 120 VAC / 230 VAC at 45-65 Hz 5. AC input connector US IEC320/C14 (requires country specific cord) 6. 6 Foot DC 12AWG/4C output cable 7. 10-segment LED for AC, 80%, 100%, Fault, Ammeter (6) 8. Stores up to 10 user-selectable charge algorithms 9. Dimensions: 11" x 9.7" x 4.3" 10.Weight: 11 lbs
Charging AdviceAll our chargers are specially designed for use with batteries for Golf Buggies and Golf Trolleys. Please see our !!<Charger FAQ's Page>!! for more information on how to get the most from your Golf Trolley and Golf Buggy batteries.
9A 24V Fan Assisted Charger. 3 Stage fully intelligent Charging. For long term charging.
Stage 1. Charger Equalizes batteries.
Accesses the state of the charge in each battery before charging and equalizes the 2 batteries.
Stage 2. Charger controls rate of charge in accordance with previous results. Adjusts the input power of charge that is made depending on the charge present, reduces risk of charging the batteries to quickly.
Stage 3. After charging batteries is constantly monitored and keeps battery topped up on trickle or floating charge. On completion of the charge the input current is reduced to a nominal amount. A very tiny charge is added to the batteries as and when it is needed. This allows the charger to remain connected the batteries for long periods of time, keeping the batteries in tip-top condition.
1. Short-circuit protection
2. Overload protection
3. Reverse polarity protection
4. Intelligent temperature compensation
5. Automatic multi-rate charger
6. Unique LCD display or meter
7. Indicator lights: Red, green, yellow.
8. Wide input voltage range
9. Advanced smd technology
10.Stylish aluminium housing
Input: Voltage AC100V-240V
Output: Current 9A (max) 200W (max)
Back lit LCD display
Dimensions (mm):200 x 120 x 60
Suitable for All Battery types including: Sealed and flooded Lead Acid, Gel, Agm.

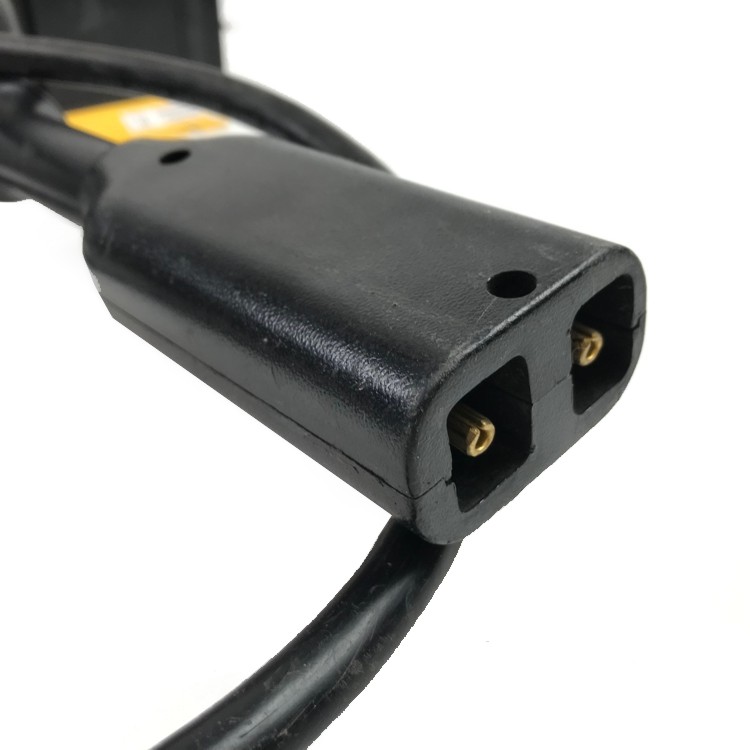

For All Golf Buggies. Mobility Buggies and similar Applications. Fitted with 3 way din plug.
